Periodic Audio Carbon V3 – IEM Earphones With Detachable Cable

Periodic Audio Carbon V3

Periodic Audio Carbon goes back to the basic elements in the creation of the perfect earphone sound. Every part integrated into Periodic Audio earphones plays an important role in the audio chain. Periodic Audio has taken the absolute earphone experience further with upgrade design offering the same outstanding performance but now with detachable cable and redesigned housing.

All earphones in the Periodic Audio line-up are crafted from the ground up and every element is designed and tooled entirely by Periodic Audio. The driver diaphragm on this version earphone is coated with a layer of industrial diamond that is highly rigid but lightweight. It is able to produce powerful bass-heavy sound while keeping a healthy midrange and trebles extension.

As every part of the Periodic Audio Carbon earphones has it’s unique purpose, the housings have been precision moulded from an anti-resonant and highly durable polycarbonate. The internal body shape has been carefully configured to distribute the acoustic pressure evenly and utilises every bit of space for the absolute listening experience.

Elementary listening.

Carbon Diaphragm
Made from a layer of industrial diamond on a light substrate the diaphragm provides rigid but lightweight characteristics that creates a dominating low-end extension while keeping the midrange and trebles alive and balanced.

Precision Crafted
With precision injection moulded parts the housing is made from highly durable polycarbonate material that provides a rigid material free from vibrational noises. The internal body shape is tuned to distribute the acoustic volume evenly in the front and back of the housing.

Detachable Cable
Equipped with redesigned cable that is detachable and terminated with Periodic Audio’s own designed custom 2.5mm connectors. Periodic Audio’s own IDEEL (IEM Direct Electrical Engagement Link) connectors are the world’s smallest 2.5mm connectors, measuring just 3.6mm across with a mounting depth of 9.5mm.

Perfect Fit
To further make the sound of the Periodic Audio earphones an audiophile-level listening experience, they are supplied with both silicone and memory foam eartips in different shapes and sizes for true immersive sound performance.

5-Year Warranty
As Periodic Audio are confident with the quality and longevity of their earphones they offer a limited 5-year warranty on parts and labour.

Technical Specifications

Performance

• Frequency Response: 12 Hz to 38 kHz
• Impedance: 32 Ohms nominal
• Sensitivity: 98 dB SPL at 1mW in ear
• Power Handling: 200 mW continuous
• Peak SPL: 121 dB
• THD: Less than 0.2% THD at 1mW

Physical Properties

• Cable Length: 1.5 m
• Mass: 2.8 / 9.3 g (IEM/Set)
• Operational Temperature: -20 to +50° C
• Operational Humidity: 0-95% Relative Humidity
• NRR: 31.3 dB (foam eartip)
• Overall Length: 21 mm
• Body Diameter: 12 mm
• Nozzle Diameter: 6 mm

Material Properties

• Melting Point: 3925 Kelvin
• Speed of Sound: 12190 meters per second
• Young’s Modulus: 1050 Gigapascals
• Brinell Hardness: ∞ Megapascals

Features

• Carbon diaphragm made from a rigid industrial diamond compound
• Detachable cable with custom designed connectors
• Dominating clean bass without sacrificing mids or treble clarity
• Wideband 10mm dynamic transducer without crossover network
• Precision moulded from anti-resonant and durable polycarbonate
• Internal body shape is tuned to distribute acoustic volume evenly
• Silicone and memory foam eartips in different shapes and sizes

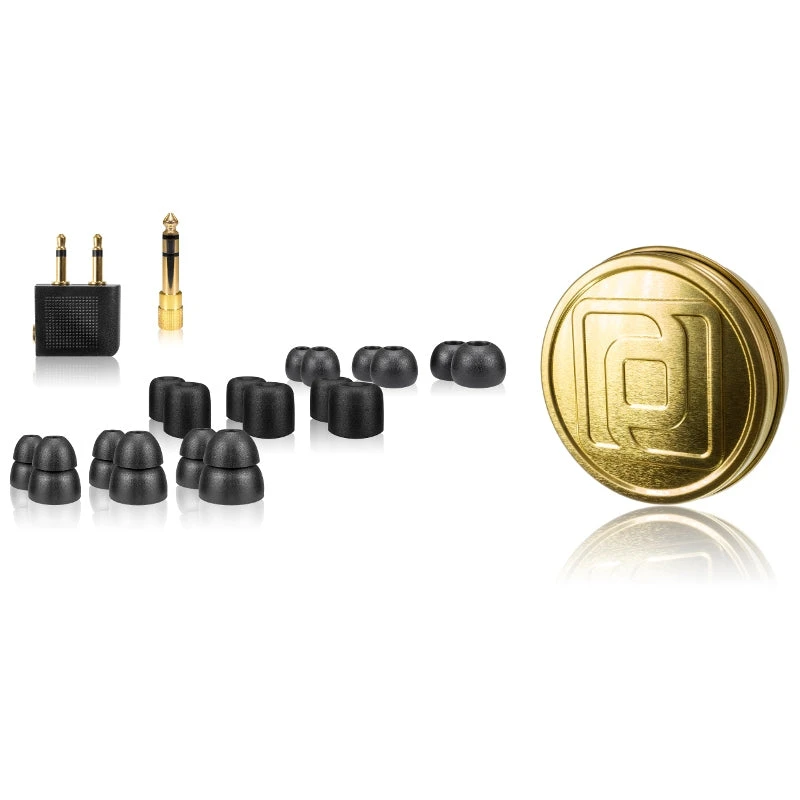

Package Includes

• Periodic Audio Carbon V3 Earphones
• Silicone eartips (S/M/L)
• Memory foam eartips (S/M/L)
• Dual flange eartips (S/M/L)
• Double mono airline adapter
• 3.5mm to 6.35mm adapter
• Hard carrying case
